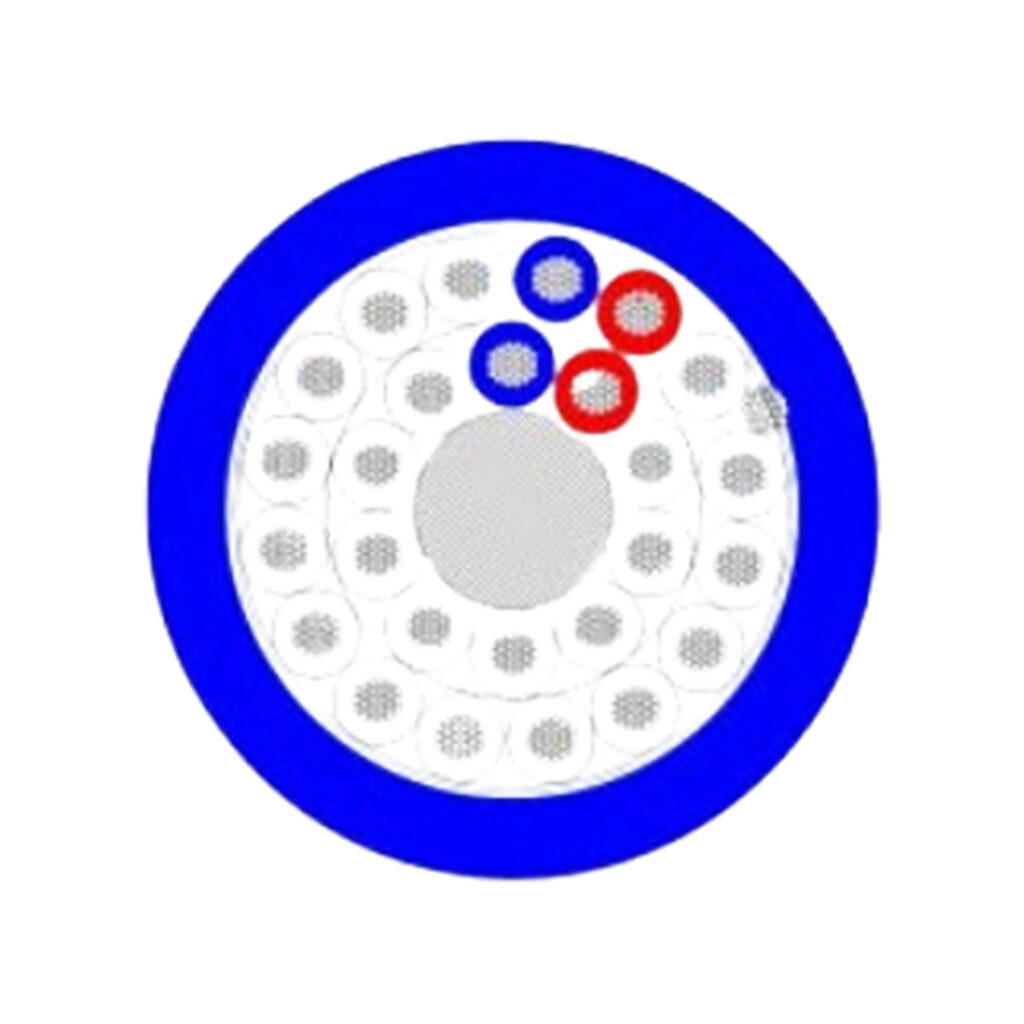

Cable CS8519, 6 x stwp, 2 x 0.22m2, 16 x 1mm2, fibre braid, w/water block
Art nr 1079882 (CS8519)
- 6 off 0.5 mm² insulated twisted screened pair
- 2 off 0.22 mm² insulated conductor
- 16 off 1 mm² insulated conductor
Description
| Core cross sectional area | 1.0 mm² | 0.5 mm² | 0.22 mm² |
| Max conductor resistance @ 20°C | 20.0 Ω/km | 40.1 Ω/km | 92.4 Ω/km |
| Voltage rating | 450/750 V | 150/250 (300) V | 150/250 (300) V |
| Routine test voltage | 2.5 kVAC/ 6.0kVDC | 1.5 kVAC/ 3.6 kVDC | 1.5 kVAC / 3.6 kVAC |
| Voltage test duration | 5 Minutes | 5 Minutes | 5 Minutes |
| AC spark test voltage | 6 kV | 5 kV | 5 kV |
| Current rating in free air @ 30°C | 10 A | Signal | Signal |
| Insulation resistance 20°C @ 500V DC | > 1013 MΩ.km | > 1019 MΩ.km | > 1350 MΩ.km |
Cable attributes:
- Nominal overall diameter: 22.4 mm
- Nominal radial thickness of outer sheath: 1.8 mm
- Nominal diameter over braid: 18.8 mm
- Nominal diameter over bedding sheath: 18.2 mm
- Nominal radial thickness of bedding sheath: 1.2 mm
- Nominal laid up diameter of cable: 15.8 mm
- Nominal diameter of 1st cable run: 10.6 mm
- Weight of cable in air (approx.): 623 kg/km
- Weight of cable in seawater (approx.): 218 kg/km
- Weight of cable in freshwater (approx.): 229 kg/km
- Ambient operating temperature range: -20 to 80°C
- Maximum conductor temperature: 90°C
- Minimum recommended static bend radius: 202 mm
- Minimum recommended dynamic bend radius: 292 mm
- Maximum continuous length: 1000 m
- Maximum hydrostatic working pressure: 2500 PSI (TBC)
- Minimum break load: 1134 kg.f (TBC)
