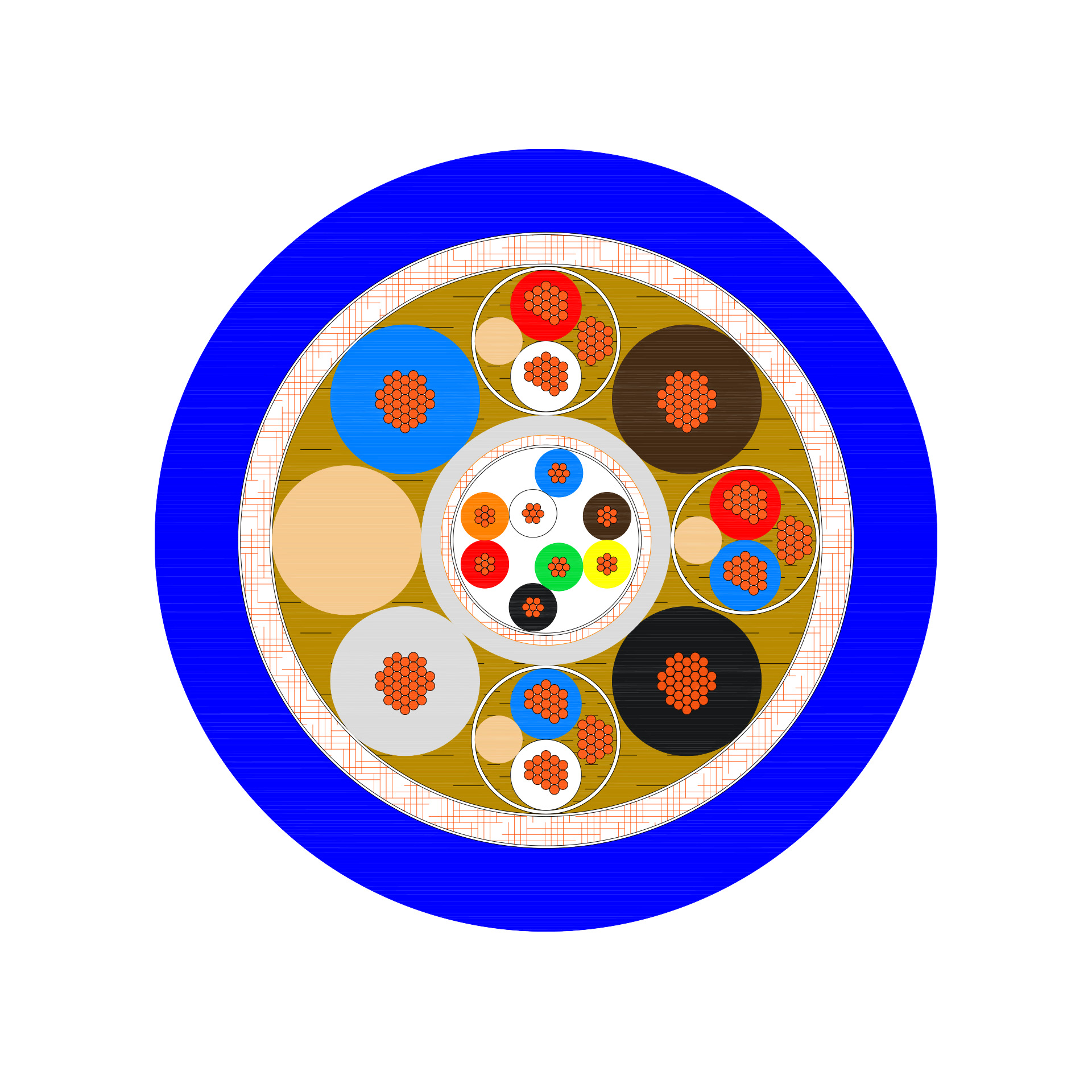

Cable, Ethernet CAT5, 3 x (2×0.5) stwp, 4 x 1mm2
Artnr 1080357 (CS9071)
- 4 off 1.0 mm² conductior
- 3 off 0,5 mm² STP
- 1 off Cat 5e S/UTP
- 1 off 3.0 mm diameter filler
Description
| Core cross sectional area | 1.0 mm² | 0.5 mm² |
| Max conductor resistance @ 20°C | 20.0 Ω/km | 40.1 Ω/km |
| Voltage rating Uo/U(Um) | 0.6/1.0 (1.2) kV | 90 V |
| Routine test voltage | 3.5 kVAC / 8.4 kVDC | 0.75 kVAC/ 1.5 kVDC |
| Voltage test duration | 5 Minute | 1 Minute |
| AC spark test voltage | 7 kV | 5 kV |
| Current rating in free air @ 30°C | 15 A | Signal |
| Insulation resistance 20°C @ 500V DC | > 850 MΩ.km | > 183 MΩ.km |
Electrical characteristics Cat 5e
- Loop resistance 220 Ω/km
- Mutual capacitance 45 pF/m
- Impedance @ 100 MHz 100 Ω ±5%
- Attenuation @ 100 MHz: 3.0 dB/10m
- Attenuation @ 200 MHz: 5.8 dB/10m
- Next @ 100 MHz 42 dB
- PS next @ 100 MHz 39 dB
- ACR-N @ 100MHz 39 dB/10m
- PS ACR-N @ 100 MHz 36 dB/10m
- ACR-F @ 100 MHz 60 dB/10m
- PS ACR-F @ 100 MHz 57 dB/10m
- Return loss 28 dB
Cable attributes Approx.
- Nominal overall diameter 16.0 mm
- Nominal radial thickness of outer sheath 1.7 mm
- Nominal diameter over screen 12.6 mm
- Nominal laid up diameter of cable 11.3 mm
- Weight of cable in air 374 kg/km
- Weight of cable in seawater 168 kg/km
- Weight of cable in freshwater 173 kg/km
- Ambient operation temperature range -20 to 60 °C
- Maximum conductor temperature 70 °C
- Minimum recommended static bend radius 128 mm
- Minimum recommended dynamic bend radius 192 mm
- Maximum continuous length 900 m
- Maximum hydrostatic working pressure 400 Bar (TBC)
