Cable, signal, 4 pair
Art nr 1042912 (SQ13522 – B)
- Contains 4 off 0,5mm² STP.
Description

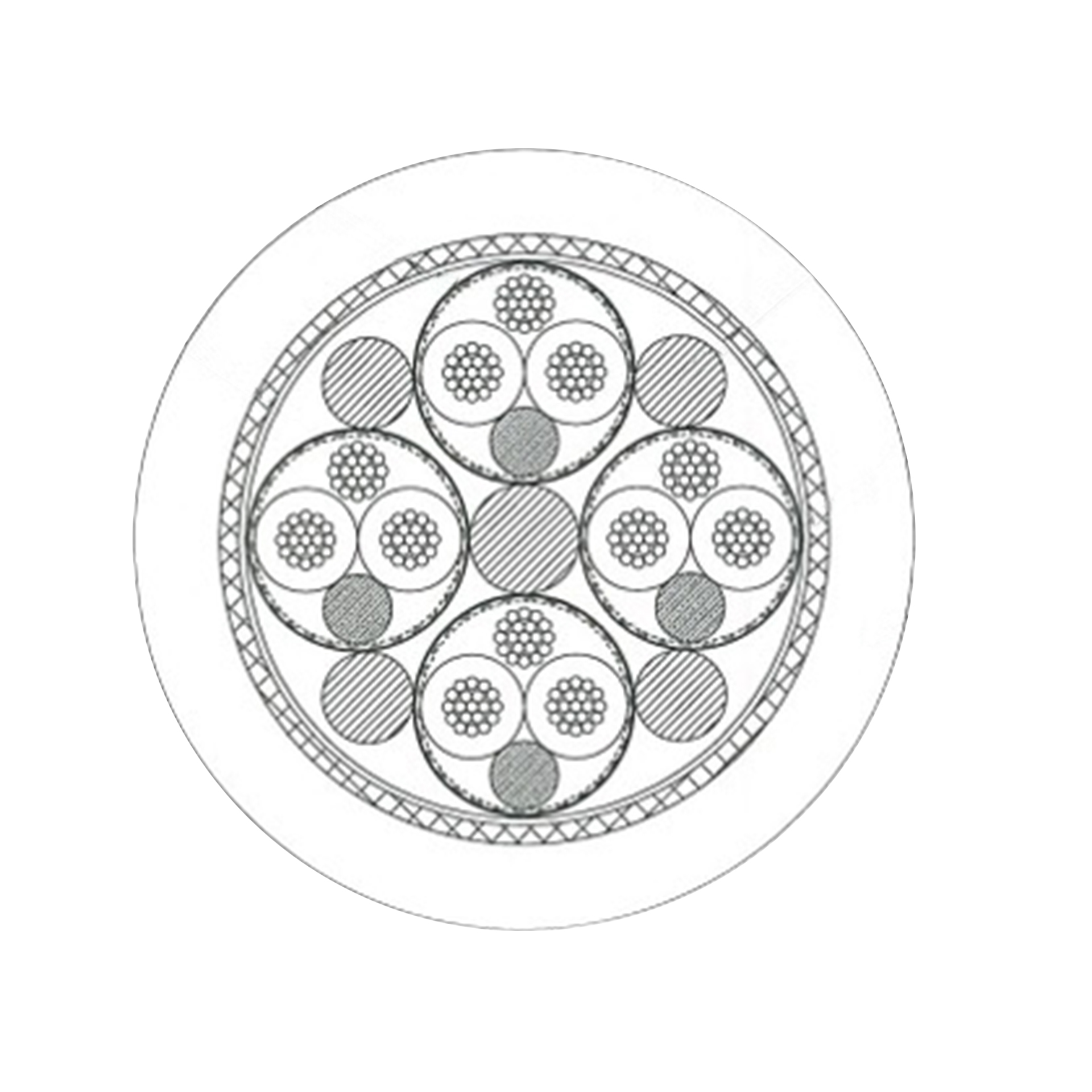

Assembly details:
- 4 off individually screened 0.5 mm² twisted pairs: Screens comprise polyester/aluminium laminate tape and tinned copper drain wire
- Fibre filler elements
- Voilled filled with silicon rubber
- Braided polyurethane sheath
- 1.3 mm nominal thickness
Nominal mechanical characteristics:
- Finished diameter: 12 mm
- Weight in air: 170 kg/km
- Weight in seawater: 60 kg/km (*Assumed seawater density = 1.026 kg/m³)
- Minimum bend radius static: 80 mm
- Minimum bend radius dynamic: 120 mm
- Minimum breaking load: 4.9 kN
