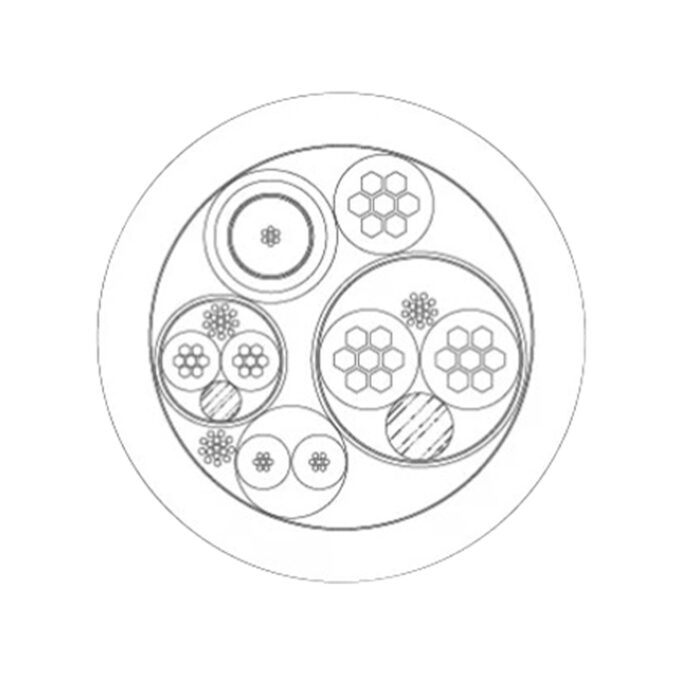

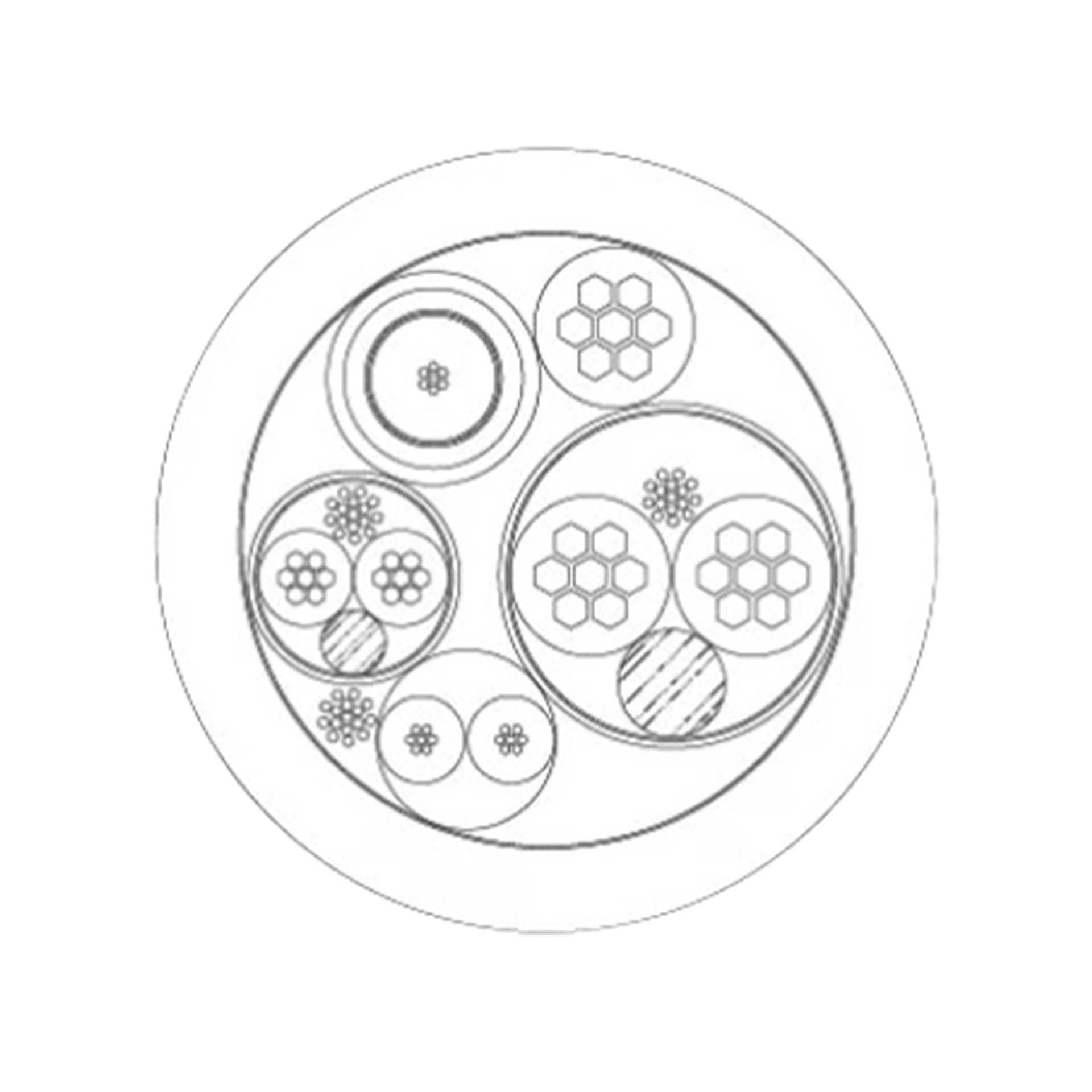

Camera Cable, Mini TV Cable
Art nr 1031073 (CS382)
- 1 off coax RG179 – 75 ohm
- 1 off 1.34 mm² conduct
- 1 off 1.34 mm² STP
- 1 off 0.5 mm² STP
- 1 off 0.22 mm² UTP
Description
COAXIAL TYPE RG179
- Impedance: 75 Ω
- Max conductor resistance @ 20°C: <239,5 Ω/km
- Capacitance: 54 ± 5 pF/m
- Velocity of propagation: 82 %
- Attenuation @ 10 MHz: 6.0 dB/100m
- Attenuation @ 100MHz: 19.5 dB/100m
- Attenuation @ 200MHz: 28.0 dB/100m
| Core cross sectional area | 1.34 mm² | 0.5 mm² | 0.22 mm² |
| Max conductor resistance @ 20°C | 14.9 Ω/km | 40.1 Ω/km | 92.0 Ω/km |
| Voltage rating | 90 V AC | 300 V AC | 440 V R.M.S |
| Routine test voltage | 0,75kVAC/ 1.5kVDC | 1.0 kVAC/ 2.0 kVDC | 1.34 kVAC |
| Voltage test duration | 1 Minute | 1 Minute | 1 Minute |
| AC spark test voltage | 5 kV | 5 kV | 5 kV |
| Current rating in free air @ 30°C | 11 A | 11 A | 11 A |
| Insulation resistance 20°C @ 500V DC | > 152 MΩ.km | > 213 MΩ.km | > 318 MΩ.km |
Cable attributes Approx.
- Nominal overall diameter 11.0 mm
- Nominal radial thickness of outer sheath 1.55 mm
- Nominal laid up diameter of cable 7.9 mm
- Weight of cable in air 177 kg/km
- Weight of cable in seawater 80 kg/km
- Weight of cable in freshwater 82 kg/km
- Ambient operation temperature range -20 to 60 °C
- Maximum conductor temperature 70 °C
- Minimum recommended static bend radius 88 mm
- Minimum recommended dynamic bend radius 132 mm
- Maximum continuous length 900 m
- Maximum hydrostatic working pressure 4500 PSI
