Gisma Series 61

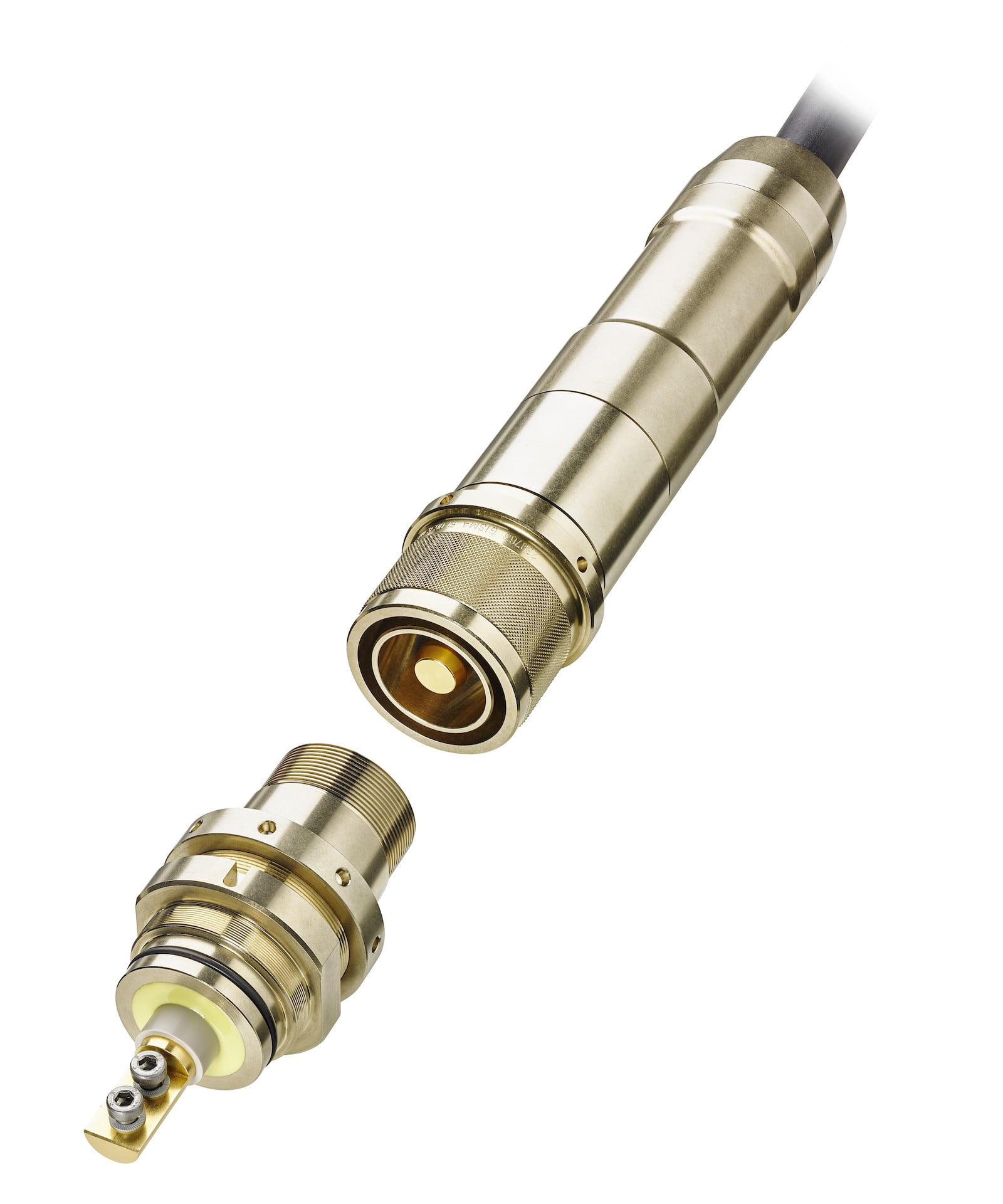

The electrical round connectors series 61 with robust metal housing are designed for special requirements of renewable energies
Description
The longitudinally watertight vulcanized elastomer insulators with patented lip seal guarantee high operational reliability under difficult environmental conditions. With a flat thread in the locking sleeve severe impurities are tolerated
Technical information
- available in bronze
- pressure watertight
- dry pluggable
- lip- and conical sealing in the mating area
- contact arrangements 1 to 37 contacts
- operating voltage max. 1.2 kV
- operating current up to 680 A
- robust contacts
- robust keyway
- endbells for large cable diameter available
