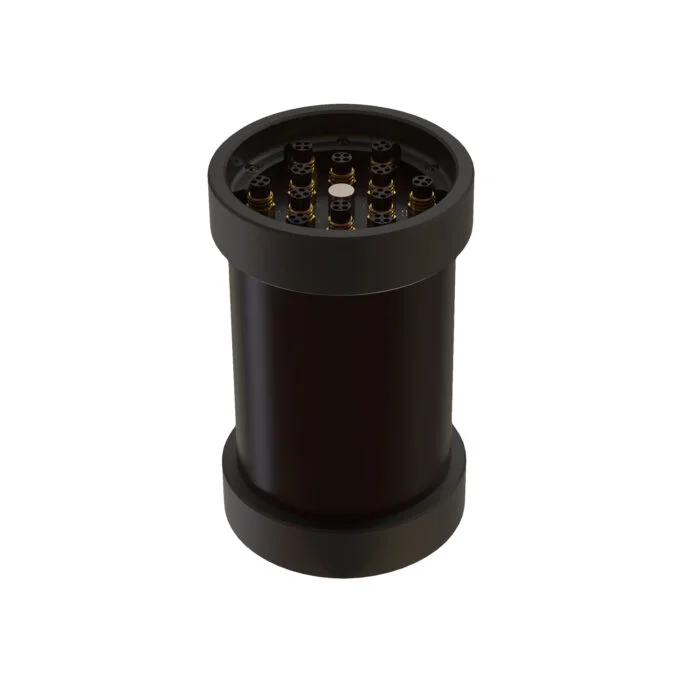

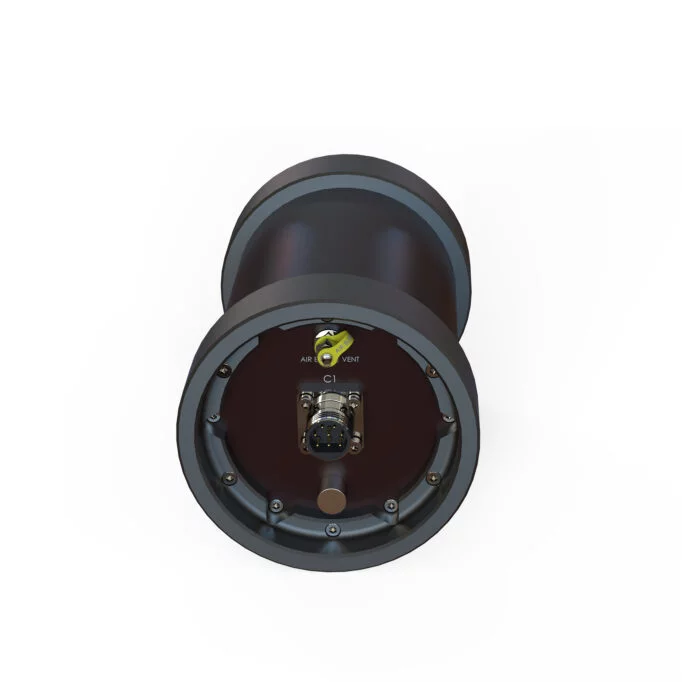

Remote I/O – 12 ch
12 channels I/O distribution unit
The I/O distribution unit collects data from 12 sensors, simplifies subsea systems with one connector, and ensures reliable transmission with controllable relays for galvanic separation.
Description
The I/O distribution unit is designed to collect up to 12 individual sensors and transfer the data on ethernet or serial communcations. 8 of the connectors are dedicated to analogue signal (4-20mA) and 4 of the connectors are dedicated to digital signal.
The unit is based on Innova’s product PIO36 with extensive field experience. Implementing the I/O Distribution Unit into a subsea control system will simplify the main controller as this needs only on connector with cable to access data from up to 12 analogue/digital sensors.
The unit is also fitted with controllable relays for galvanic separating the outputs.
Key features
- Up to 12 I/O input
- Ethernet / serial communcation
- 10-30VDC supply
- Controllable relays on all outputs for galvanic isolation
