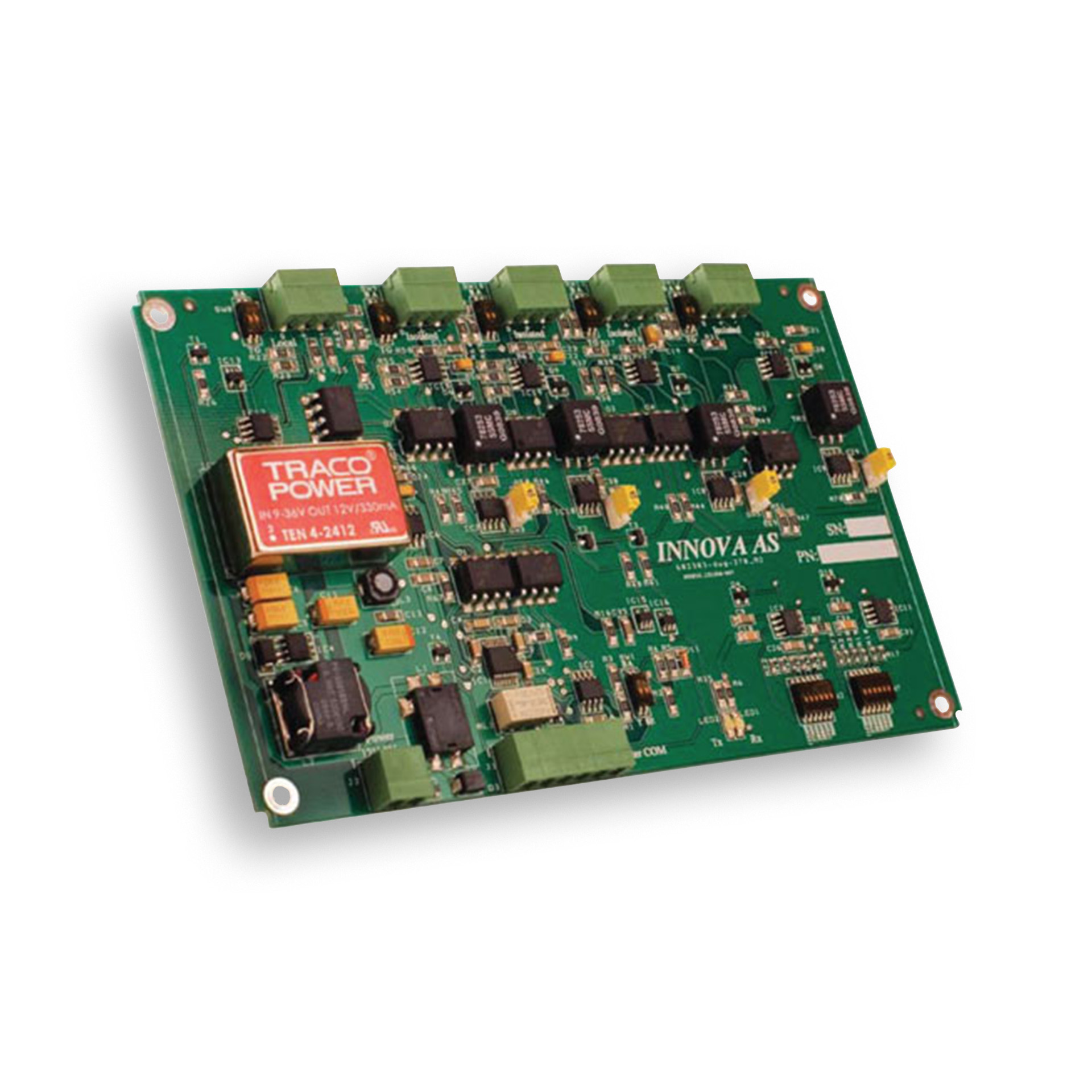

CUTE™ Communication Distribution Board

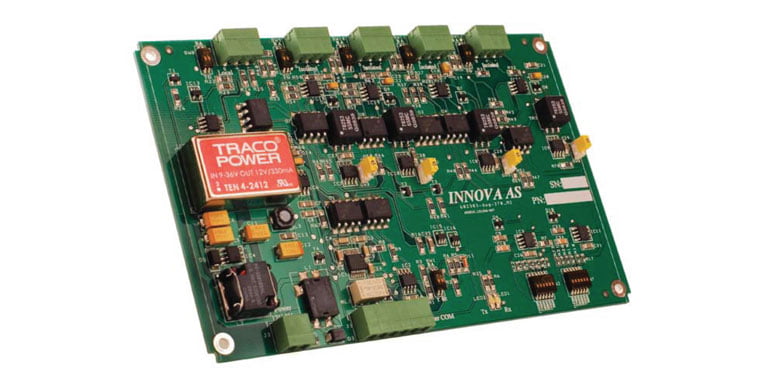

The communication distribution board connects galvanic isolated RS485 networks together and makes them accessible to a master. Communication to master system can be either RS232 or RS485.

Description

The communication distribution board connects galvanic isolated RS485 networks together and makes them accessible to a master.
Communication to master system can be either RS232 or RS485.

Technical information

Power:
• Power Supply: 12VDC (24VDC Optional)
• Maximum communication speed: 115kbps

Size and mounting interface:
• Size: 160 x 100 x 12 mm
• Mounting:Rail mounting on the short edges
Alternatively mounted by 4 holes for M3 bolts, 1 in each corner 5 mm from the corners. Connections on the long sides

Terminals:
• Power :Phoenix MC 1,5/2-ST-2,5 connector
• Master connection:Phoenix MC 1,5/6-ST-2,5 connector
• Slave connections:Phoenix MC 1,5/3-ST-2,5 connector

Datasheet

Innova-Datasheet-CUTE_Communication_Distribution_Board-222321-r0



Related products

LINK

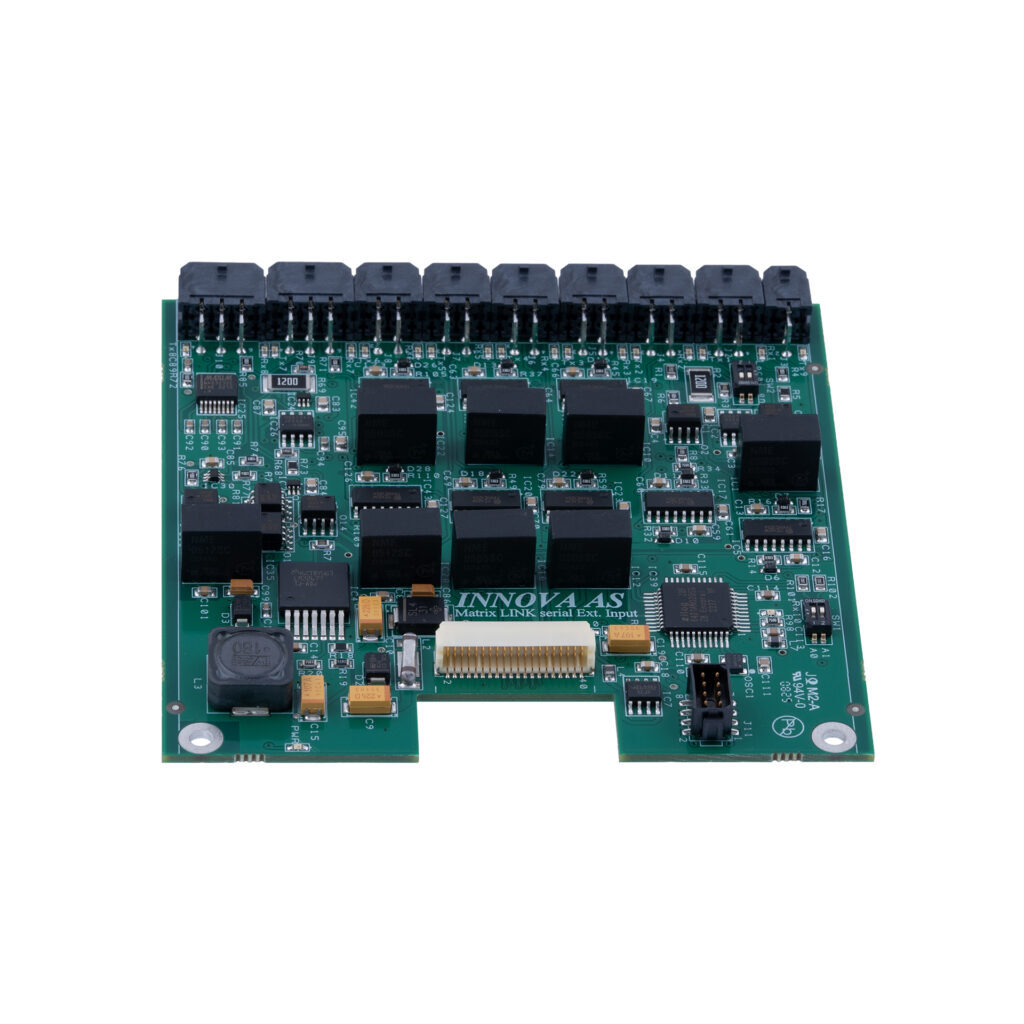

LINK™ – Extension Boards
