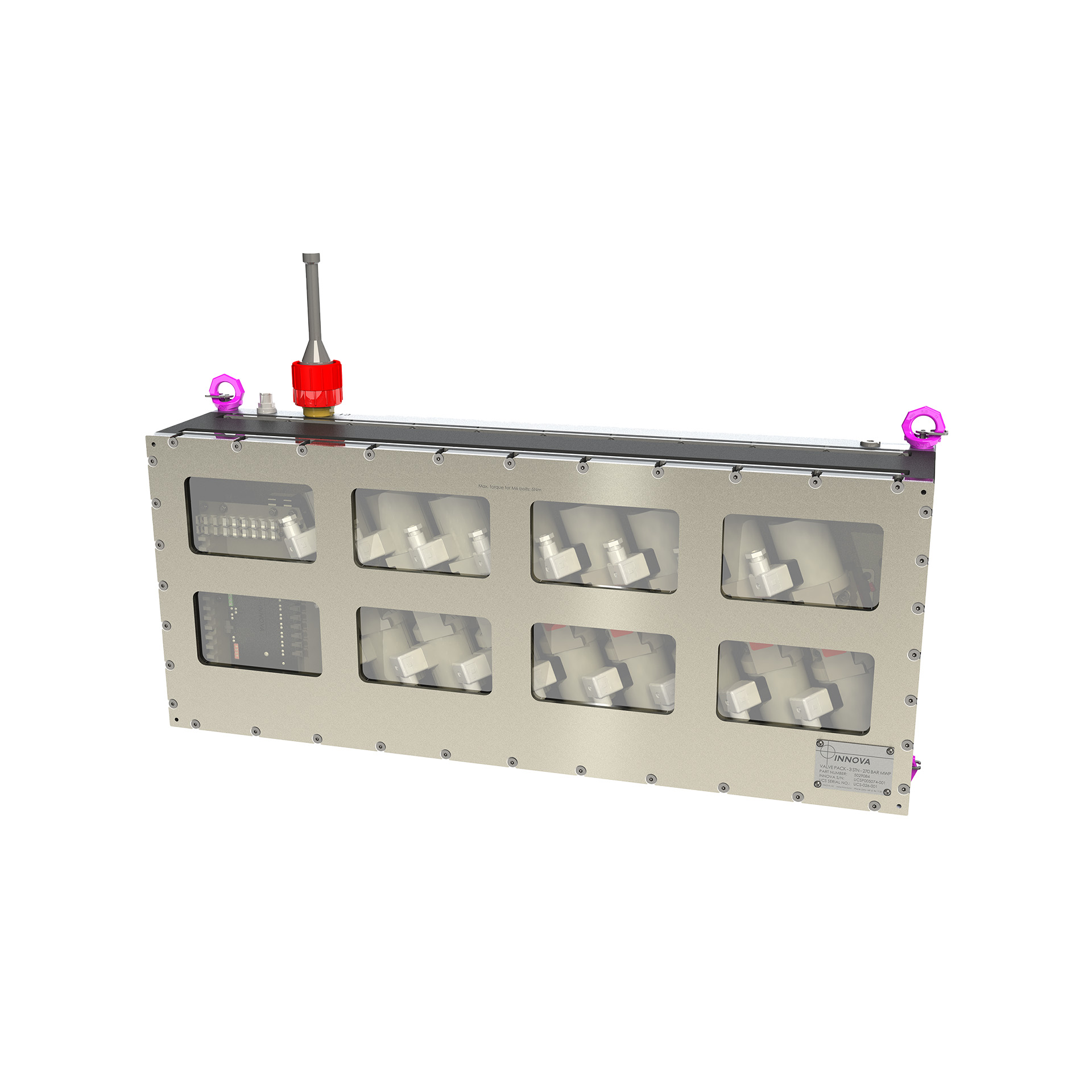

Valve Pack 8 Ch NG10
8 channel High Flow Valve Pack
Subsea valve pack with 8 high flow bidirectional, proportional and on/off directional valves.
Description
Each channel features either proportional flow control or on/off up to 80l/min or 140l/min with minimum pressure drop.
Inlet oil pressure is monitored and a safety relief valve is installed on inlet to avoid overpressure. Valve control and communication is provided by Innova’s PIO36 pressure tolerant controller boards, enabling full control of the valve pack via serial or Ethernet network (Modbus RTU or TCP).
Innova’s topside GUI software is used to control and monitor all functions of single or multiple valve packs.
The valve packs can also easily configurable to allow integration with Client’s existing control system.
Key features
- 8 off 4/3-way valves
- Flow rate (prop): 80 l/min
- Rated on/off: 140l/min
- Max rated pressure: 270 bar
- Max depth rating: 4000 m
