Tritech SeaKing SBP – Parametric Sub Bottom Profiler

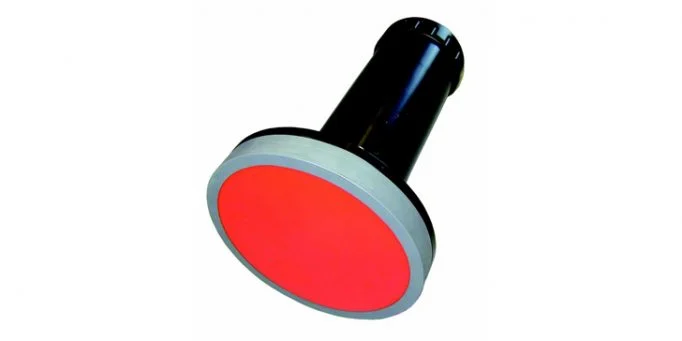

The Tritech SeaKing Parametric Sub Bottom Profiler (SBP) allows you to obtain a clear picture of what lies below the seabed and this compact, low power unit, ideal for ROV and AUV use.



Categories: ,

Description

An innovative multi-element composite transducer array enables the echosounder to emit very low frequencies whilst minimising the size of the overall unit. Producing a 10kHz to 30kHz pulse, the parametric sub bottom Profiler is capable of penetrating the seabed and highlighting seismic structural differences and layers that are hidden from view to conventional echosounders.
As part of Tritech’s SeaKing range of sonars, sensors it is possible to run the SeaKing SBP with other SeaKing sensors over one communication link. All products in the SeaKing family (or third-party products within the ARCNET communications link), can be run simultaneously, using the same processor and display; such as Tritech’s Surface Control Unit (SCU) or a customer supplied PC or laptop.

The Parametric Sub Bottom Profiler display allows the operator to view the raw 200kHz seabed profile, as well as the 10-30kHz sub bottom layers produced by the parametric pulse.

Technical information

Acoustic
Low Frequency
Frequency: 20kHz
Beamwidth: 4.5°

High Frequency
Frequency: 200kHz
Beamwidth: 4°

Pulse length 100μs

Electrical and Communication
Power requirements: 24V DC at 410mA
Communication protocols: ARCNET, RS232

Physical
Weights Air: 6.3kg, Water: 2.7kg
Depth rating: 4000m
Materials: Aluminium alloy (hard anodised)
Temperature: -10 to 35°C (storage: -20 to 50°C)

Software
Tritech Seanet Pro or low-level direct command control

Datasheet

parametric-sub-bottom-profiling-seaking-sbp Datasheet

parametric-sub-bottom-profiling-seaking-sbp_hardware_manual

parametric-sub-bottom-profiling-seaking-sbp-seanet-pro-software-manual

parametric-sub-bottom-profiling-seaking-sbp-seanet-remote-communications-software-manual

parametric-sub-bottom-profiling-seaking-sbp-seaking-parametric-sub-bottom-profiler-pn-s072330
