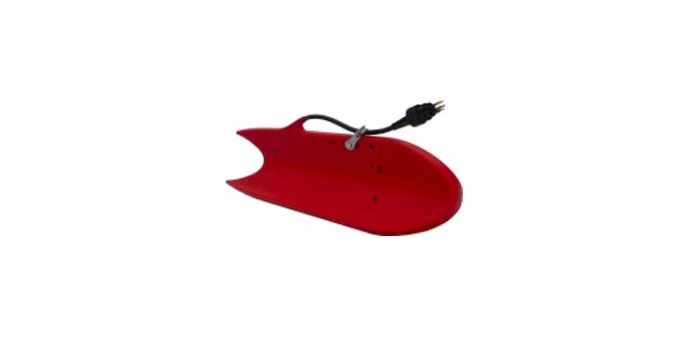

Tritech StarFish 990F

High-Resolution Side Scan Sonar (Shallow Water).



Categories: ,

Description

The full-body, three-fin, hydrodynamic design of the StarFish systems challenge the common cylindrical or torpedo-shape of traditional side scan sonars. The unique shape of the StarFish systems dramatically improves the stability of the sonar and consequently the quality of the images it produces. Furthermore, the advanced digital CHIRP (Compressed High Intensity Radar Pulse) acoustic techniques used by StarFish systems offer better range resolution compared to conventional, fixed-frequency side scan sonars.

Building on the success of the original StarFish 450F, the StarFish 990F is the ultimate high-resolution  side scan sonar for extreme image definition and target detection. The sonar uses a high frequency 1MHz CHIRP transmission with extremely narrow horizontal acoustic beam to provide the sharpest, most defined images. With 35m range capability on each channel (70m total swathe coverage), the sonar is ideal for high-resolution survey in ports & harbours, inland waterways such as rivers and canals and excels when used for SAR (Search And Recovery/Rescue) operations. The sonar also has an inline connector to allow the cable to be swapped or replaced on site. Existing owners of StarFish 450F & 450H systems can upgrade to the StarFish 990F, should they desire higher definition sonar imagery.

Datasheet

starfish-990f-high-resolution-side-scan-sonar-shallow-water0

starfish-brochure (3)



Manual

starfish-990f-high-resolution-side-scan-sonar-shallow-water0_hardware_manual

starfish-990f-high-resolution-side-scan-sonar-shallow-water0-quick-start-guide
