Sonardyne Dunker 6

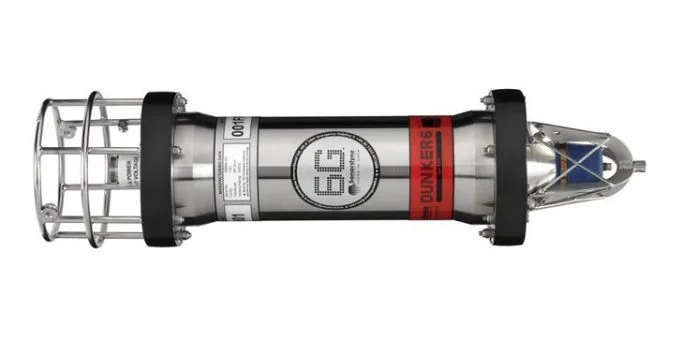

Dunker 6 is a 6G® Wideband®2 Long BaseLine (LBL) and telemetry transceiver specifically designed for vessel deployment. The super duplex stainless steel housing with shock and vibration isolated electronics makes for an extremely rugged dunking system
Description
Its high power output and Sonardyne Wideband®2 signal processing offers improved operating range and acoustic performance in challenging conditions such as when deployed from noisy vessels or in multipath environments.
The internal Lithium-ion rechargeable battery pack minimises the supply current for long dunker cables. It also enables relocation of the dunker if the cable is cut.

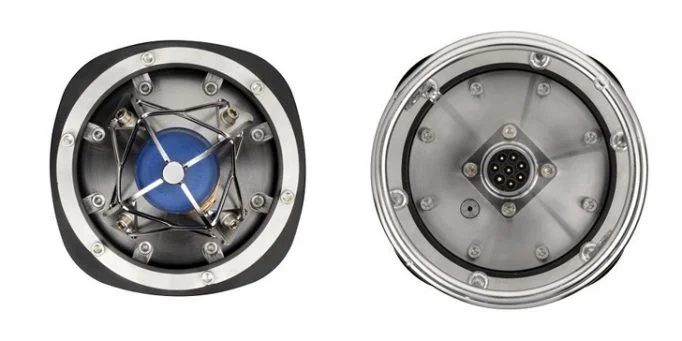

The robust AGP connector on the Dunker 6 is identical to the ROVNav 6 and HPT USBL for compatibility and to reduce spares.
Dunker 6 LBL and telemetry transceiver is fully compatible with Sonardyne’s modem and logging equipment such as AMT and Fetch products, allowing it to be used to retrieve data or configure logging regimes. It supports all of Sonardyne Wideband®2 spread spectrum acoustic communication.

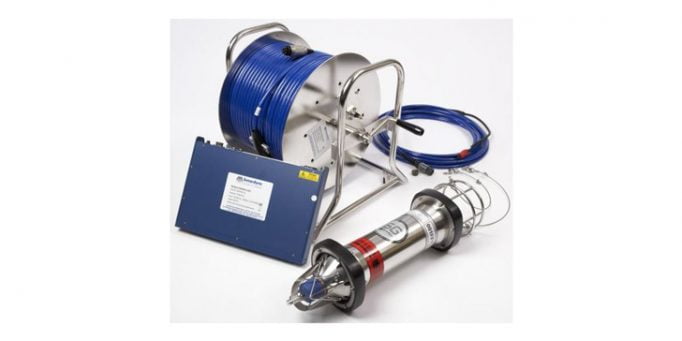

The Dunker 6 system consists of 100 m of cable on a stainless steel cable drum with brake and locking mechanism. The 10 m deck cable between the 48 V Surface Interface Unit (SIU) and the cable drum allows the drum to be conveniently located. The connection to the cable drum is via an easily replaceable 8-way SubConn.
WHAT YOU NEED TO KNOW
- Perfect for commanding LBL transponders
- Use it to recover data from Fetch and AMTs
- Deploy it over-the-side of your vessel
- Rugged mechanics and connectors
- Shock mounted internal electronic
Technical information
| Feature | Type 8309-1351 | Type 8309-1353 | Type 8309-1355 | Type 8309-1356 |
| Depth Rating | 1,000 m | 1,000 m | 1,000 m | 1,000 m |
| Operating Frequency | MF (21–32.5 kHz) | MF (21–32.5 kHz) | LMF (14–19 kHz) | LMF (14–19 kHz) |
| Transducer Beam Shape | Omni-directional | Directional | Omni-directional | Directional |
| Transmit Source Level (dB re 1 µPa @ 1 m) | 187–196 dB (4 Levels) | 190–202 dB (4 Levels) | 187–196 dB (4 Levels) | 187–202 dB (4 Levels) |
| Tone Equivalent Energy (TEE)* | 193–202 dB | 196–208 dB | 193–202 dB | 193–208 dB |
| Receiver Sensitivity (dB re 1 µPa) | 90–120 dB (7 Levels) | 80–120 dB (7 Levels) | 90–120 dB (7 Levels) | 80–120 dB (7 Levels) |
| Range Precision | Better than 15 mm | |||
| Serial Communications (Software Programmable) |
Primary port: RS485 (half duplex) or RS232 Secondary port: RS485 (half duplex) or RS232 or SYNC IN |
|||
| Operating Voltage | 24 or 48 V dc (±10%) | |||
| External Power: Active (listening) Peak (during transmission) |
<3 W typical (maximum 6 W when charging) <80 W |
|||
| Battery Life Li-ion (Listening) | 3 Days | |||
| Mechanical Construction | Super-Duplex Stainless Steel | |||
| Dimensions; Length x Diameter | 692 x 200 mm | 660 x 200 mm | 586 x 200 mm | 641 x 230 mm |
| Weight in Air/Water** | 24/16 kg | 26/17 kg | 20/14 kg | 28/17 kg |
| Connector Type | AGP (8-way female) | |||
